MEA Power: Your Trusted Partner for Advanced Solar Solutions in the UAE

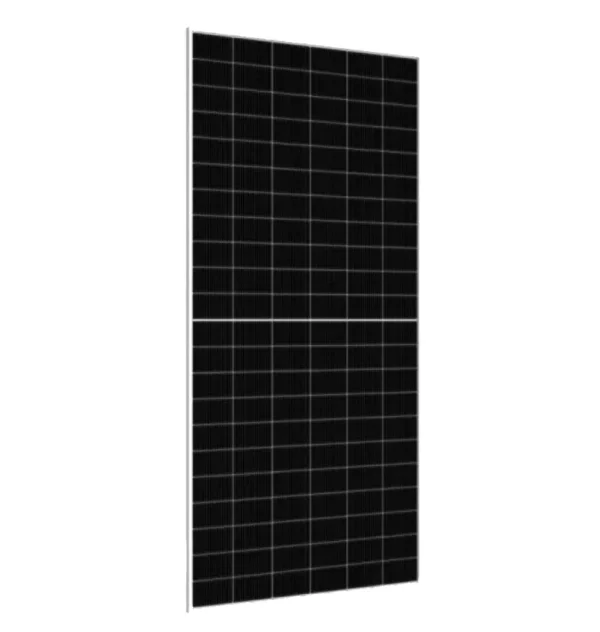

MEA Power, the authorized supplier of Risen Energy in the UAE, is proud to introduce the RSM132-11-605-630BNDG, a high-performance n-type TOPCon bifacial solar module designed to deliver exceptional efficiency, durability, and adaptability. This module is engineered to meet the rigorous demands of commercial, industrial, and utility-scale solar projects, making it an ideal choice for the UAE’s diverse energy needs.
Unmatched Efficiency and Power Output
The RSM132-11-605-630BNDG offers a power output range of 605-630 Wp, with a maximum module efficiency of 23.3%. Its positive power tolerance of 0 to +3% ensures consistent and reliable energy generation, even in space-constrained installations. The module’s advanced n-type TOPCon (Tunnel Oxide Passivated Contact) solar cell technology minimizes electron recombination, enhancing both performance and longevity.
Advanced Bifacial Design for Higher Energy Yield
Equipped with bifacial technology, this module captures sunlight on both the front and rear sides, maximizing energy output in diverse environments. Under standard test conditions (STC), it achieves a 10% rear side power gain, elevating the total equivalent power output to up to 693 Wp. This makes it ideal for installations in the UAE, where reflective surfaces like sandy terrain or light-colored rooftops amplify rear-side energy capture.
Built for Extreme Conditions
The UAE’s harsh climate demands solar modules that can withstand high temperatures and mechanical stress. The RSM132-11-605-630BNDG excels with:
- Superior Temperature Coefficient: A low -0.29%/°C temperature coefficient for Pmax ensures minimal efficiency loss in high-heat environments.
- Robust Construction: Featuring anodized aluminum alloy frames and heat-strengthened glass (2.0mm front and rear), the module resists corrosion, dust, and mechanical loads up to 5400 Pa (front) / 2400 Pa (back).
- Environmental Resilience: Excellent anti-LID (Light-Induced Degradation) and anti-PID (Potential Induced Degradation) performance guarantees long-term reliability, even in humid or saline conditions.
Optimized Performance in Low-Light Conditions
The module’s exceptional weak-light performance ensures consistent energy production during early mornings, late evenings, or overcast days, making it a dependable choice for regions with variable weather patterns.
cmprehensive Warranty and Trusted Support
Risen Energy backs the RSM132-11-605-630BNDG with a 15-year product warranty and a 30-year linear power warranty, ensuring your investment remains productive for decades. MEA Power complements this with localized expertise, offering seamless installation support, maintenance, and after-sales service tailored to the UAE market.
RSM132-11-605-630BNDG Series: Detailed Specifications
Model: RSM132-11-605BNDG
- Rated Power (Pmax): 605 Wp
- Total Equivalent Power (10% rear gain): 666 Wp
- Electrical Characteristics (STC):
- Voc (Open Circuit Voltage): 48.49 V
- Isc (Short Circuit Current): 15.86 A
- Vmpp (Maximum Power Voltage): 40.28 V
- Impp (Maximum Power Current): 15.02 A
- Module Efficiency: 22.4%
- NMOT Performance:
- Pmax: 458.1 Wp
- Voc: 45.10 V
- Isc: 13.01 A
Model: RSM132-11-610BNDG
- Rated Power (Pmax): 605 Wp
- Total Equivalent Power (10% rear gain): 666 Wp
- Electrical Characteristics (STC):
- Voc (Open Circuit Voltage): 48.49 V
- Isc (Short Circuit Current): 15.86 A
- Vmpp (Maximum Power Voltage): 40.28 V
- Impp (Maximum Power Current): 15.02 A
- Module Efficiency: 22.4%
- NMOT Performance:
- Pmax: 458.1 Wp
- Voc: 45.10 V
- Isc: 13.01 A
Model: RSM132-11-610BNDG
- Rated Power (Pmax): 610 Wp
- Total Equivalent Power (10% rear gain): 671 Wp
- Electrical Characteristics (STC):
- Voc: 48.69 V
- Isc: 15.92 A
- Vmpp: 40.46 V
- Impp: 15.08 A
- Module Efficiency: 22.6%
- NMOT Performance:
- Pmax: 462.0 Wp
- Voc: 45.28 V
- Isc: 13.05 A
Model: RSM132-11-615BNDG
- Rated Power (Pmax): 615 Wp
- Total Equivalent Power (10% rear gain): 677 Wp
- Electrical Characteristics (STC):
- Voc: 48.89 V
- Isc: 15.98 A
- Vmpp: 40.64 V
- Impp: 15.14 %
- Module Efficiency: 22.8%
- NMOT Performance:
- Pmax: 465.9 Wp
- Voc: 45.47 V
- Isc: 13.10 A
Model: RSM132-11-620BNDG
- Rated Power (Pmax): 620 Wp
- Total Equivalent Power (10% rear gain): 682 Wp
- Electrical Characteristics (STC):
- Voc: 49.08 V
- Isc: 16.04
- Vmpp: 40.81 V
- Impp: 15.20 A
- NMOT Performance:
- Pmax: 469.7 Wp
- Voc: 45.64 V
- Isc: 13.15 A
Model: RSM132-11-625BNDG
- Rated Power (Pmax): 625 Wp
- Total Equivalent Power (10% rear gain): 688 Wp
- Electrical Characteristics (STC):
- Voc: 49.27 V
- Isc: 16.10 A
- Vmpp: 40.98 V
- Impp: 15.26 A
- Module Efficiency: 23.1%
- NMOT Performance
- Pmax: 473.5 Wp
- Voc: 45.82 V
- Isc: 13.20 A
Model: RSM132-11-630BNDG
- Rated Power (Pmax): 630 Wp
- Total Equivalent Power (10% rear gain): 693 Wp
- Electrical Characteristics (STC):
- Voc: 49.46 V
- Isc: 16.16 A
- Vmpp: 41.17 V
- Impp: 15.31 A
- Module Efficiency: 23.3%
- NMOT Performance:
- Pmax: 477.3 Wp
- Voc: 46.00 V
- Isc: 13.25 A
General Specifications for All Models
- Bifacial Factor: 80±10%
- Temperature Coefficient (Pmax): -0.29%/°C
- Anodized Aluminum Alloy, Silver Color
- Dimensions: 2382×1134×30mm (93.78×44.65×1.18 in)
- Weight: 32.5kg (71.65 lb)
- Maximum System Voltage: 1500VDC
- Connectors: PV-SY02/Others (IP68-rated, 3 bypass diodes)
Packaging and Logistic
- Modules per 40ft Container: 720
- Modules per Pallet: 36
- Gross Weight per Box: 144kg
Why Choose RSM132-11-605-630BNDG?
- High Efficiency: Up to 23.3% module efficiency
- Bifacial Technology: Captures sunlight on both sides for higher energy yield.
- Durability: Designed to withstand harsh environmental conditions, including high temperatures and mechanical stress.
- Comprehensive Warranty: 15-year product warranty and 30-year linear power warranty.
Why Partner with MEA Power?
As Risen Energy’s trusted partner in the UAE, MEA Power combines global technology with local expertise. We provide:
- Tailored Solutions: Customized configurations for project-specific needs.
- End-to-End Support: From procurement to installation and maintenance.
- Sustainability Commitment: Reducing carbon footprints through cutting-edge solar technology.
Conclusion
The RSM132-11-605-630BNDG n-type TOPCon bifacial module redefines solar efficiency and durability, making it a cornerstone for sustainable energy projects in the UAE. Partner with MEA Power to leverage Risen Energy’s advanced technology and our unmatched regional support.
Contact MEA Power today to explore how the RSM132-11-605-630BNDG can elevate your solar energy strategy.
