Product Description:

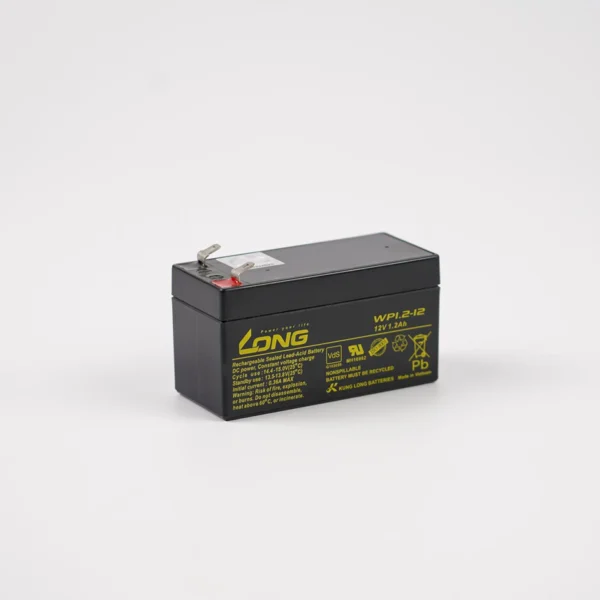

The Long WP1.2-12 is a high-performance, valve-regulated lead-acid (VRLA) battery designed for a wide range of applications, including backup power, emergency lighting, and portable devices. With a nominal voltage of 12V and a nominal capacity of 1.2Ah, this compact and lightweight battery offers reliable power in a small form factor. Its robust design ensures long service life and excellent performance, making it an ideal choice for both commercial and industrial use.
Key Features:
- Nominal Voltage: 12V
- Nominal Capacity: 1.2Ah (20-hour rate)
- Compact and Lightweight: Weighing approximately 550g (1.21 lbs), the WP1.2-12 is easy to handle and install.
- High Discharge Rate: Capable of delivering a maximum discharge current of 18A for 5 seconds, ensuring reliable performance during peak demand.
- Wide Operating Temperature Range: Can operate in temperatures ranging from -15°C (5°F) to 50°C (122°F), making it suitable for various environments.
- Long Shelf Life: Excellent charge retention with 97% capacity after 1 month, 92% after 3 months, and 85% after 6 months at 20°C (68°F).
- Durable Case Material: Made from ABS UL94 HB, with an option for UL94 V-0 flammability resistance for enhanced safety.
- Design Life: 3-5 years, ensuring long-term reliability and cost-effectiveness.
Applications:
The WP1.2-12 is versatile and can be used in a variety of applications, including:
- Backup Power Systems: Provides reliable power for UPS systems, ensuring uninterrupted operation during power outages.
- Emergency Lighting: Ensures continuous illumination in emergency situations, such as fire alarms and exit signs.
- Portable Devices: Powers portable medical devices, handheld tools, and other portable electronics.
- Security Systems: Offers dependable power for security cameras, alarms, and access control systems.
Technical Specifications:
- Internal Resistance: Approximately 60.5 mΩ at 1KHz.
- Charging Methods: Cycle use with a charging voltage of 14.4 to 15.0V and a maximum charging current of 0.36A. Standby use with a float charging voltage of 13.5 to 13.8V.
- Dimensions: Length (L) 97±1mm (3.82±0.04 inches), Width (W) 43±1mm (1.69±0.04 inches), Height (H) 53±1mm (2.09±0.04 inches), Overall Height (HT) 59±1mm (2.32±0.04 inches).
- Terminal: F1 or F2 (Faston Tab 187 or 250).
Performance Data:
The WP1.2-12 delivers consistent performance across various discharge rates and end voltages. Detailed discharge rates in watts and amperes are provided for different end voltages, ensuring you can select the right battery for your specific needs.
Why Choose Long WP1.2-12?
The Long WP1.2-12 stands out for its compact size, lightweight design, and reliable performance. Whether you need a dependable power source for backup systems, emergency lighting, or portable devices, the WP1.2-12 offers the perfect balance of power and portability. With a design life of 3-5 years and excellent charge retention, this battery is a cost-effective solution for your power needs.
