Product Description:

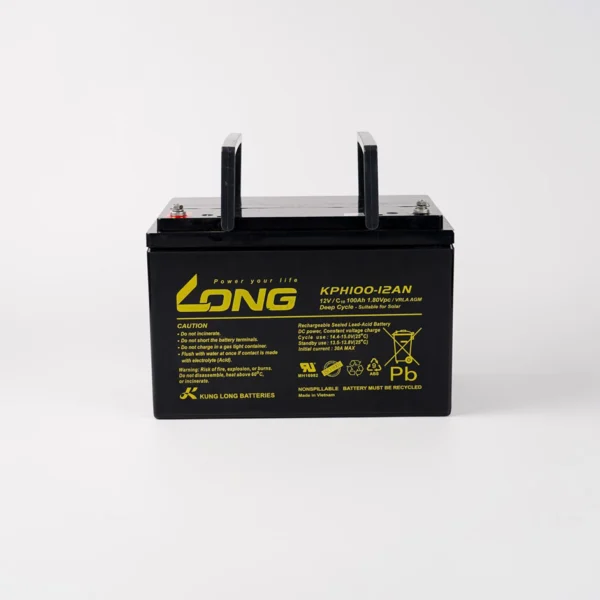

The Long KPH100-12AN is a high-capacity valve-regulated lead-acid (VRLA) battery designed for demanding applications that require reliable and long-lasting power. With a nominal voltage of 12V and a nominal capacity of 100Ah, this battery is ideal for use in renewable energy systems, telecommunications, and industrial equipment. Its durable construction and high discharge capability make it a reliable choice for both cyclic and standby applications.
Key Features:
- Nominal Voltage: 12V
- Nominal Capacity: 100Ah (10-hour rate)
- High Discharge Capability: Capable of delivering a maximum discharge current of 1200A for 5 seconds, ensuring reliable performance during high-demand situations.
- Wide Operating Temperature Range: Can operate in temperatures ranging from -15°C (5°F) to 50°C (122°F), making it suitable for various environments.
- Long Shelf Life: Excellent charge retention with 98% capacity after 1 month, 94% after 3 months, and 85% after 6 months at 20°C (68°F).
- Durable Case Material: Made from ABS UL94 HB, with an option for UL94 V-0 flammability resistance for enhanced safety.
- Design Life: 12 years, ensuring long-term reliability and cost-effectiveness.
Applications:
The KPH100-12AN is versatile and can be used in a variety of applications, including:
- Renewable Energy Systems: Provides reliable power storage for solar and wind energy systems.
- Telecommunications: Ensures continuous power for telecom base stations and communication equipment.
- Industrial Equipment: Powers industrial machinery, forklifts, and other heavy-duty equipment.
- Backup Power Systems: Offers dependable power for UPS systems and emergency backup systems.
Technical Specifications:
- Internal Resistance: Approximately 5 mΩ at 1KHz.
- Charging Methods: Cycle use with a charging voltage of 14.4 to 15.0V and a maximum charging current of 30A. Standby use with a float charging voltage of 13.5 to 13.8V.
- Dimensions: Length (L) 307±3mm (12.09±0.12 inches), Width (W) 168±3mm (6.61±0.12 inches), Height (H) 208±3mm (8.19±0.12 inches), Overall Height (HT) 214±3mm (8.43±0.12 inches).
- Terminal: F8.
Performance Data:
The KPH100-12AN delivers consistent performance across various discharge rates and end voltages. Detailed discharge rates in watts and amperes are provided for different end voltages, ensuring you can select the right battery for your specific needs.
Why Choose Long KPH100-12AN?
The Long KPH100-12AN is a high-capacity, reliable battery designed for demanding applications. With its high discharge capability, wide operating temperature range, and long shelf life, this battery is an excellent choice for renewable energy systems, telecommunications, and industrial equipment. Its durable construction and design life of 12 years ensure long-term reliability and cost-effectiveness.
