Introduction:

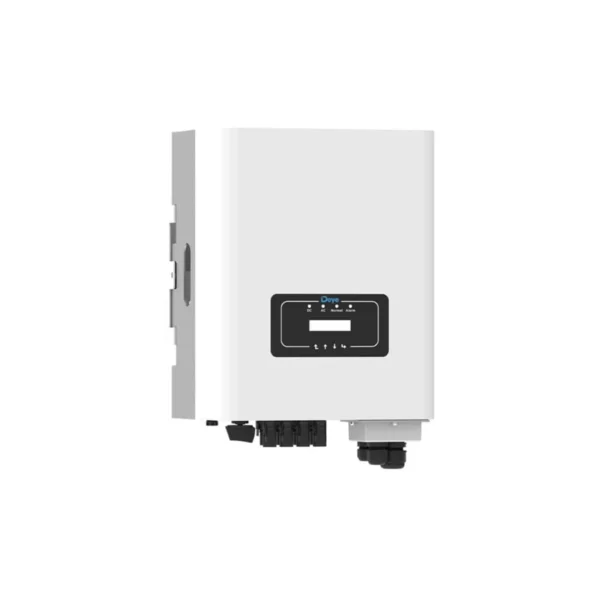

The Deye Single Phase String Inverter Series, represented by the SUN-9/10/10.5K-G02P1-EU-AM2 models, is designed for residential and small commercial solar installations. These inverters are highly efficient, with a maximum efficiency of up to 97.7%, making them an excellent choice for those looking to maximize their solar energy production. The series is particularly suited for applications where space is limited, and high energy output is required.
The SUN-9/10/10.5K-G02P1-EU-AM2 series features dual MPPT trackers, allowing for greater flexibility in system design and improved energy harvest. The inverters also support zero export applications, making them ideal for systems where grid feed-in is restricted. Additionally, the series offers a wide output voltage range and an anti-PID function, ensuring optimal performance in various conditions. With a low start-up voltage of 80V, these inverters are capable of operating efficiently even in low-light conditions.
Key Features:
- High Efficiency: The inverters offer a maximum efficiency of 97.7%, ensuring optimal energy production.
- Dual MPPT Trackers: The series features two MPPT trackers, allowing for greater flexibility in system design and improved energy harvest.
- Zero Export Application: The inverters support zero export applications, making them ideal for systems with grid feed-in restrictions.
- Anti-PID Function: The series offers an anti-PID function, ensuring optimal performance in various conditions.
- Wide Output Voltage Range: The inverters support a wide output voltage range, making them suitable for a variety of installations.
- Low Start-Up Voltage: The inverters have a low start-up voltage of 80V, allowing them to operate efficiently even in low-light conditions.
- String Intelligent Monitoring: The series supports string intelligent monitoring (optional), allowing users to track the performance of individual strings.
- IP65 Rating: The inverters are rated IP65, ensuring durability and protection against dust and water.
Models in the Series:
- SUN-9K-G02P1-EU-AM2:
- Rated AC Output Power: 9 kW
- Max. PV Input Power: 13.5 kW
- MPPT Voltage Range: 70-500V
- Max. Efficiency: 97.7%
- Max. AC Output Current: 41A
- Grid Connection Form: L/N/PE
- Operating Temperature Range: -25°C to +60°C
- Weight: 14.8 kg
- SUN-10K-G02P1-EU-AM2:
- Rated AC Output Power: 10 kW
- Max. PV Input Power: 15 kW
- MPPT Voltage Range: 70-500V
- Max. Efficiency: 97.7%
- Max. AC Output Current: 45.5A
- Grid Connection Form: L/N/PE
- Operating Temperature Range: -25°C to +60°C
- Weight: 14.8 kg
- SUN-10.5K-G02P1-EU-AM2:
- Rated AC Output Power: 10.5 kW
- Max. PV Input Power: 15.8 kW
- MPPT Voltage Range: 70-500V
- Max. Efficiency: 97.7%
- Max. AC Output Current: 47.8A
- Grid Connection Form: L/N/PE
- Operating Temperature Range: -25°C to +60°C
- Weight: 14.8 kg
Technical Specifications:
- Max. PV Input Voltage: 550V
- Start-up Voltage: 80V
- Rated PV Input Voltage: 360V
- Max. Operating PV Input Current: 26A (per MPPT)
- Max. Input Short-Circuit Current: 39A (per MPPT)
- Rated Output Voltage/Range: 220/230V (0.85Un-1.1Un)
- Rated Output Grid Frequency/Range: 50/45-55 Hz, 60/55-65 Hz
- Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
- Total Current Harmonic Distortion (THDi): <3%
- DC Injection Current: <0.5% In
- MPPT Efficiency: >99%
- Euro Efficiency: 97.2%
- Noise Level: ≤35 dB
- Cooling Type: Natural Cooling
- Warranty: 5 Years
Equipment Protection:
- DC Polarity Reverse Connection Protection: Yes
- AC Output Overcurrent Protection: Yes
- AC Output Overvoltage Protection: Yes
- AC Output Short Circuit Protection: Yes
- Thermal Protection: Yes
- DC Terminal Insulation Impedance Monitoring: Yes
- DC Component Monitoring: Yes
- Ground Fault Current Monitoring: Yes
- Arc Fault Circuit Interrupter (AFCI): Optional
- Surge Protection Level: TYPE II (DC), TYPE II (AC)
- Power Network Monitoring: Yes
- Island Protection Monitoring: Yes
- Earth Fault Detection: Yes
- Overvoltage Load Drop Protection: Yes
- Residual Current (RCD) Detection: Yes
Conclusion:
The Deye Single Phase String Inverter Series, represented by the SUN-9/10/10.5K-G02P1-EU-AM2 models, offers a highly efficient and flexible solution for residential and small commercial solar installations. With features like dual MPPT trackers, zero export applications, and an anti-PID function, these inverters are ideal for maximizing solar energy production. The wide output voltage range and low start-up voltage ensure compatibility with a variety of installations, making this series a versatile and reliable choice for solar energy systems. Whether you’re looking to optimize your energy production or ensure grid compliance, the SUN-9/10/10.5K-G02P1-EU-AM2 series provides a robust and efficient solution.
